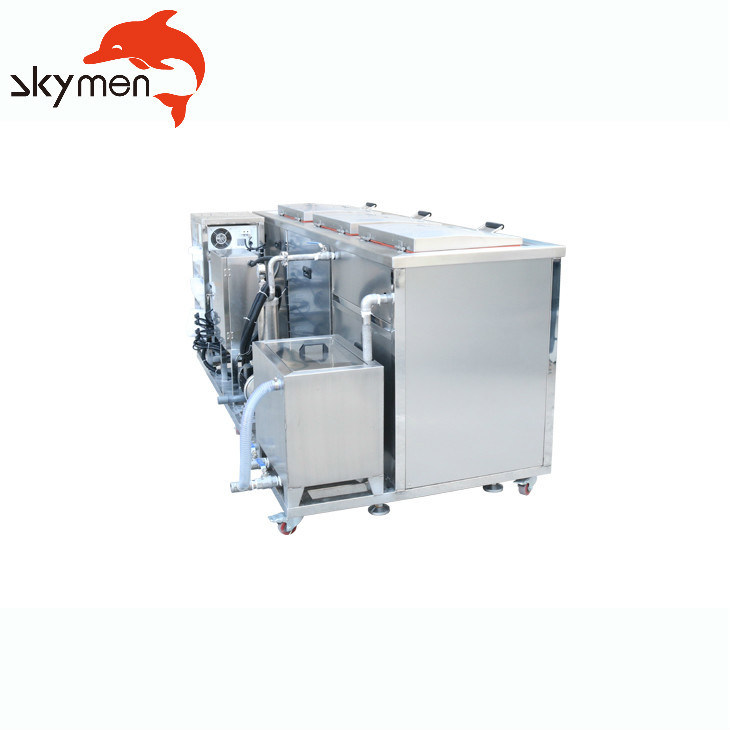

Three Tanks SUS316 Ultrasonic Fuel Injector Cleaning Machine
Product Details:
Place of Origin: | China |
Brand Name: | SKYMEN |
Certification: | CE, FCC, ROHS |
Model Number: | JP-2036G |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | 6000~10000 per set |
Packaging Details: | Plywood box packaging |
Delivery Time: | 15~25 working days |
Payment Terms: | T/T |
Supply Ability: | 5000 PCS per month |
Detail Information |
|||
Application: | Mold Cleaning | Type: | Multi-tank |
---|---|---|---|
Tank Material: | SUS316 | Housing Material: | Stainless Steel |
Filtration System: | Optional | ||
High Light: | Three Tanks Ultrasonic Fuel Injector Cleaning Machine,SUS316 Ultrasonic Fuel Injector Cleaning Machine,SUS316 fuel injector ultrasonic cleaner |
Product Description
Skymen Durable Three Tanks Aeronautical Industry Advanced Ultrasonic Cleaning Machine
Tank working size 40” x 24” x 24”
* 1 to 1.5 HP Pump
* Tank can be equipped with automatic autofill feature and overflow protection. Overflow protection
requires discharge drain at customer location.
* Heater System: Designed to maintain rinsing fluid temperature. Includes a 9KW immersion heater with digital temperature controller and ceramic insulation.
3. ) Dual Drying Tank: Tank size is 40” x 24” x 24”
* Includes a recirculated hot air dryer system, which includes a 7KW heater core, and a blower.
* Temperature is controlled with included digital temperature controller, insulated with Ceramic
Insulation, and has a maximum temperature of 180 degrees F.
1st ultrasonic cleaning tank | 2nd Ultrasonic rinsing tank | 3rd hot air drying tank | |||
Capacity | 360L | Capacity | 360L | Capacity | 360L |
Tank size |
1000*600*600 mm |
Tank size |
1000*600*600 mm |
Tank size |
1000*600*600 mm |
Tank Material | SUS304/316 | Material | SUS304/316 | Tank material |
Stainless steel 2 mm thick |
Ultrasonic Frequency | 28khz/40khz | Ultrasonic Frequency | 28khz/40khz | House material |
Stainless steel 1 mm thick |
Ultrasonic Transducer |
72 pieces |
Ultrasonic Transducer |
72 pieces | Drainage | Ball valve |
Ultrasonic Power |
3600W |
Ultrasonic Power |
3600W | Drying method | Hot air dryer |
Heating Power | 9KW | Heating Power | 9KW | Drying Power | 6000W |
Timer | 1~99 hour adjustable | Timer | 1~99 hour adjustable | Dry time | Digital adjustable |
Heater | 20-95 °C | Heater | 20-95 °C | Dry Tem. | Digital adjustable |
Filtration System | Optional | Filtration System | Optional | Well dried alarm | Yes |
Application:
Brass, copper strips etc in through feed methods
Appliances prior to the enameling process
Jeweler
Rings, bracelets, watch bracelets, brackets, powder boxes, lipstick boxes, cufflinks, handbag handles, jewelleries of all kinds
Manufacturers of large devices
Cover hoods for fluorescent tubes, money exchange machines, ticket printers, typing and telex machines, contact units, telephone boxes devices, etc.
Medical mechanics
Cannulas, surgical and dental instruments, glass cuvettes
Metal industry
Zink printing cast parts
Metal manufacturers
Mirror manufacturers
Electronic industry
Three tanks cleaning system for reference
Model | JP-3048GPH | JP-3072GPH | JP-3144GPH |
Clean tank tank size | 550*400*350 | 600*500*450 | 1000*600*600 |
Rinse tank tank size | 550*400*350 | 600*500*450 | 1000*600*600 |
Dry tank tank size | 550*400*350 | 600*500*450 | 1000*600*600 |
Tank capacity | 77L each | 135L each | 360L each |
Clean tank Ultrasonic power | 1200W | 1800W | 3600W |
Rinse tank Ultrasonic power | 1200W | 1800W | 3600W |
Dry tank Ultrasonic power | 一一一 | 一一一 | 一一一 |
Clean tank Heating power | 3000W | 4500W | 9000W |
Rinse tank Heating power | 3000W | 4500W | 9000W |
Dry tankHeating power | 2600W | 3000W | 4500W |
Capacity | 28KHZ/40KHZ | ||
Tank material | 304/316SUS | ||
Tank thickness | 2MM | ||
Timer | 1S-99hours adjustable/Normally open | ||
Heater | 20-95c adjustable | ||
Drain valve | 1 inch | ||
Basket & Lid | standard equipped | ||
Machine Voltage | AC 220V/380V, 3phases | ||
Generator Voltage | AC110V/220V, 1phase | ||
Features | 1.with filtration system 2.with casters with brake 3.1 year warranty & tech support for life |
