• SKYMEN SUS316 1.2kW Immersible Ultrasonic Transducer
SKYMEN SUS316 1.2kW Immersible Ultrasonic Transducer

SKYMEN SUS316 1.2kW Immersible Ultrasonic Transducer

Product Details:

Place of Origin: China Guang dong
Brand Name: SKYMEN
Certification: CE ROHS FCC
Model Number: JP-1024I

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US$900~1200/set
Packaging Details: Plywood box
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 6000 set/month
Get Best Price Contact Now

Detail Information

Material: SUS316(or SUS304) Power: 1200W
Transducer Quantity: 24 Cable Lead Out: Rigid/hose Tube
Mounting Type: Wall/bottom Mounted Sample: Available
High Light:

SUS316 Immersible Ultrasonic Transducer

,

1.2kW Immersible Ultrasonic Transducer

,

1.2kW ultrasonic cleaning transducer

Product Description

1200W 40khz immersible Ultrasonic Transducer Cleaner




Common Applications – Advantages of Immersible Ultrasonic Cleaning Transducers

Drop in ultrasonics addition to existing manufacturing cleaning process lines (aqueous cleaning lines, passivation, plating lines, or other part finishing processes which require from microscopic surface scrubbing agitation)
The stainless steel box heavy duty design with completely sealed components allow for precision ultrasonic cleaning in conditions normally too harsh for such precision electronics
Valve bodies and manifolds with small internals not accessible for cleaning by forced spray or mechanical removal
Medical device stainless steel parts cleaning
Aerospace parts cleaning
Ultrasonic part cleaning of water soluble machining coolants, chips, particulate, and true machining/cutting oils, buffing, polishing and lapping compounds which require mechanical surface scrubbing to remove.
General washing for maintenance, manufacturing, rework and/or remanufacturing.





Specification:

Model: JP-1024i

pack size: L430*W280*H100mm

Ultrasonic power: 1200W

Ultrasonic frequency: 40KHZ

Lead-out way: Rigid tube/hose tube

Material: SUS304

110V/220V 60hz/50Hz,

Come with generator



SKYMEN SUS316 1.2kW Immersible Ultrasonic Transducer 0



Immersible ultrasonic transducers are sealed stainless steel enclosures which allow for adding ultrasonics to parts cleaning new tanks or adding onto existing tanks, equipment and systems. This addition allow for uniform precision parts cleaning of the part surface by using ultrasonic frequencies to cavitate the aqueous solution molecules in the tank.

Immersible Ultrasonic Cleaner Transducer Power Sizing and In-Tank Placement

The number and placement of the submersible ultrasonic cleaning transducers is primarily determined by the volume of liquid in the tank, geometric layout of the existing tank, and load size of the parts. Depending on the size of the tank and parts cleaning application, the Watts of ultrasonic power per gallon or Watts/gal can vary from 30 to 100+ W/gal.

The immersible ultrasonic transducers can be mounted on the sides or bottoms of the parts washing/cleaning tanks, depending upon their geometry. In general, side mounting is recommended for tanks where the depth is more than two times the smallest of the length / width and side mounting the ultrasonics reduces the debris and foreign material from settling on the top of the transducer box which will reduce the ultrasonic effectiveness.

Bottom Mounted Immersible Ultrasonic Transducer Box and Generator





These submersible ultrasonics can be made in 28 kHz frequency, for tough to clean parts like engine blocks and mold cleaning burnt on carbon, and 40 kHz frequency for general parts cleaning including precision machined components, in an agitated immersion parts washer or stationary metal sided tanks. Immersibles are not typically added to polypropylene, PVC, PVDF or other plastic based tanks as the plastic absorbs the ultrasonic energy thereby reducing the cavitation energy delivered to the part surface.



SKYMEN SUS316 1.2kW Immersible Ultrasonic Transducer 1

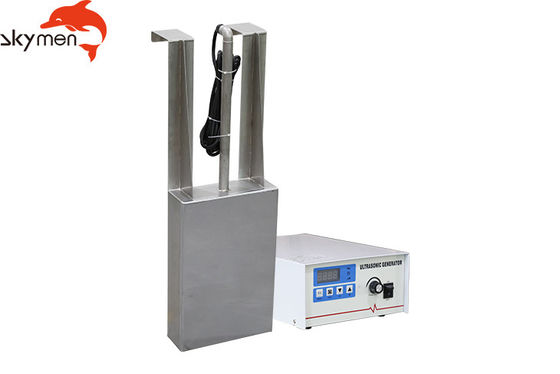

Side or wall mounted Immersible Ultrasonic Transducer Box and Generator

SKYMEN SUS316 1.2kW Immersible Ultrasonic Transducer 2
