45 Gallon 175L Skymen Marine Ultrasonic Cleaning Machine

45 Gallon 175L Skymen Marine Ultrasonic Cleaning Machine

Product Details:

Place of Origin: SHENZHEN CHINA
Brand Name: SKYMEN
Certification: CE,ROHS,FCC,PSE
Model Number: JP-480ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD1880-2150 per set negotiable
Packaging Details: 1240*915*1120mm (wooden case)
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20,000 pcs per month
Get Best Price Contact Now

Detail Information

Tank Size (LxWxH): 700x500x500mm, 27.5'' X 19.7'' X 19.7'' Unit Size (LxWxH): 980x760x800mm, 38.6'' X 30'' X 31.5''
Accessories: Basket, Lid Capacity: 45 Gallons, 175L
Ultrasonic Frequency: 28/40Khz Ultrasonic Power: 2400W
Heating Power: 6000W Material: SUS304 (SUS316L Optional)
Heater: 20-95 Celsius Timer: 0-99min
Caster: 4pcs Ultrasonic Transducers: 48pcs
Certification: CE, RoHS, FCC Use: Engineer Parts Cleaning, Sterilizing / Disinfecting, Descaling / Stripping
After-sales Service Provided: Online Support Voltage (v): 220, 380, 240, 110
High Light:

175L Ultrasonic Cleaning Machine

,

Skymen Marine Ultrasonic Cleaning Machine

,

45 Gallon Ultrasound Cleaner Tank

Product Description

Skymen Marine Ultrasonic Cleaning Machine Ultrasound Cleaner Tank Industrial Ship Cleaner 45 gallon 175L


Skymen Marine Ultrasonic Cleaner from China Manufacturer Keep Ships Sailing and Our Oceans Safer!

When ships are on the high seas, they can’t reach a service bay quickly, so the crews must proactive and do some preventative maintenance work to make sure their journey keep going. Ultrasonic cleaners make the journey safer and more efficient thanks to the precision cleaning capabilities of ultrasonic cavitation.

Specially designed ultrasonic cleaning unit for the use in the marine field. Perfect for the cleaning of metal parts.
Stainless-steel basket and stainless steel cover are included in delivery.
We could customize support frame that can be screwed to the floor makes the unit particularly suitable for the use at sea.

Ultrasonic Cleaners is a proven efficient way to fit in with moderen shipboard maintenance due to highly effective cleaning results with little manual intervention. The volumes and frequency can be customized according to your requirements.


Key Feature for skymen industrial ultrasonic cleaner JP-300ST

  • Ultrasonic tank made of 2mm thickness SUS304 stainless steel
  • Time Setting 0-99min, Automatic safety switch-off to prevent unintended permanent operation
  • Temperature Control: 20-95 °C, Automatic safety switch-off to protect the cleaning items against excess temperatures

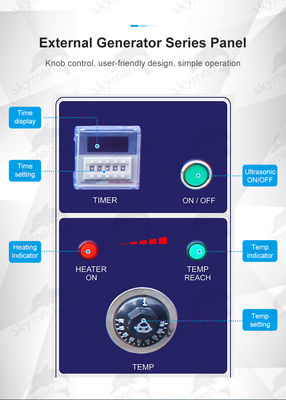

  • Indication of set values and actual values on LED display
  • Stainless steel tank has resistance to wear and long work life
  • With drainage,basket,lid and Multi-direction castors

 45 Gallon 175L Skymen Marine Ultrasonic Cleaning Machine 045 Gallon 175L Skymen Marine Ultrasonic Cleaning Machine 1

45 Gallon 175L Skymen Marine Ultrasonic Cleaning Machine 2


45 Gallon 175L Skymen Marine Ultrasonic Cleaning Machine 3
45 Gallon 175L Skymen Marine Ultrasonic Cleaning Machine 4


model  JP-480ST
ultrasonic frequency 28KHZ/40KHZ
Material SUS 304 OR 316
Transducer 48pcs
Rated power AC380V, 3 phase/50Hz
ultrasonic power 2400W (40%-100% adjuatable)
heating power 6000W (20°C to 95°C adjustable)
timer 1-99 hours adjustable
G.W 143KG
N.W 125KG



According to your requirement, Skymen can add any optional system, such as oil filtration, rinsing tank, drying tank and hydraulic lifiting, throuwing. And any size is available from us.

45 Gallon 175L Skymen Marine Ultrasonic Cleaning Machine 5






How It Works?
This method of cleaning uses a device which produces ultrasonic signals to clean objects that are too delicate or intricate to use by regular means. For this process sound waves of high frequency and a special cleaning solution are required. These sound wave frequencies can range between 20-400 kilo-Hertz. Since it is not easy to clean intricate or small parts this process of cleaning eliminates the need for using any harsh chemicals.
The devices used in the process of ultrasonic cleaning are called ultrasonic parts cleaners. Ultrasonic cleaners use special cleaning solutions to clean grime even from the inside of cracks in the tiniest parts. These devices are made from stainless steel and are corrosion and rust resistant.



Q&A

-------------More Things You May Concern ------------



Q: Does the size matter?

A: Yes. Make sure that you are looking at the tank dimensions and not just the outside dimension.



Q: Why the cleaners have different ultrasonic power?

A: No worry.  The larger tank needs more power to make the cleaning effectively. Skymen have make it perfectly fit. Compare the watt to gallon ratio." We only sell equipment that has more than enough power!



Q: What is ultrasonic frequency and how could I choose?

A: 40kHz fits most items. For very dirty items like ship engines, you could get 28khz.



Q: How about the durability?

A: Skymen cleaners made of stainless steel SUS304/316L could work very long time up to 7-10 years.



Q: Shall we have new design?

A: This is something you have to look at every day and possibly customers will be seeing your equipment too. Skymen offers the most modern designs and controls and we could do OEM label for you as well.



Q: If I need to repair the machine after 1 year warranty?

A: Being able to repair your machine to get back up and going is important. Not only does Skymen make sure that every component has an easy access panel, but we are always available to help.
