Four Stations SUS316 Tank Industrial Ultrasonic Cleaner
Product Details:
| Place of Origin: | China |
| Brand Name: | SKYMEN |
| Certification: | CE, FCC, ROHS |
| Model Number: | JP-2036G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 6000~10000 per set |
| Packaging Details: | Plywood box packaging |
| Delivery Time: | 15~25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 PCS per month |
|
Detail Information |
|||
| Application: | Mold Cleaning | Type: | Multi-tank |
|---|---|---|---|
| Tank Material: | SUS316 | Housing Material: | Stainless Steel |
| Filtration System: | Optional | ||
| High Light: | Four Stations Industrial Ultrasonic Cleaner,SUS316 Tank Industrial Ultrasonic Cleaner,Four Stations large ultrasonic cleaner |
||
Product Description

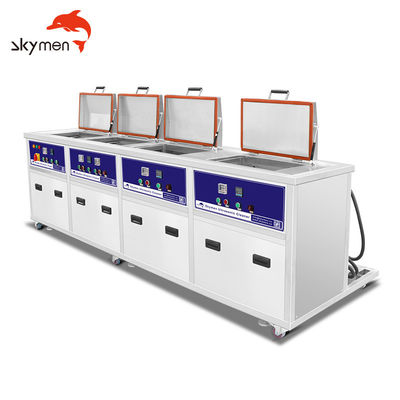

Skymen four stations SUS316 material made tank multi-frequency ultasonic cleaning system
Machine Process:
l Ultrasonic Cleaning Tank(28KHZ) with Weir, Oil Removal Filtration
l Ultrasonic Rinse Tanks(40KHZ+80KHZ)
l Drying Tanks
| TANK | Description | Tank size | Capacity | Power (W) | |
| mm (LxWxH) | Liter | Ultrasonic Watts | Heating | ||
| 1 | Ultrasonic Cleaning Tank 28Khz | 500x300x250 | 38L | 600W | 1500W |
| 2 | The 1ST Rinse Tank 40Khz | 500x300x250 | 38L | 600W | 1500W |
| 3 | The 2nd Rinse Tank 80KHZ | 500x300x250 | 38L | 600W | 1500W |
| 4 | Drying Tank | 500x300x250 | 38L | N/A | Hot air |
| Model | Tank inner size | Capacity | Ultrasonic | Heating | Max. |
| (L xW xH mm) | Liter | power | power | power | |
| JP-4024GPH | 500*300*250 | 38L | 1200W | 1.5KW*2 | 8.98KW |
| JP-4036GPH | 500*350*300 | 53L | 1800W | 1.5KW*2 | 9.58KW |
| JP-4048GPH | 550*400*350 | 77L | 2400W | 3KW*2 | 13.27KW |
| JP-4060GPH | 550*450*400 | 99L | 3000W | 4.5KW*2 | 16.87KW |
| JP-4061GPH | 800*300*400 | 96L | 1500W | 4.5kw*2 | 16.87KW |
| JP-4072GPH | 600*500*450 | 135L | 3600W | 4.5KW*2 | 17.47KW |
| JP-4096GPH | 700*500*500 | 175L | 4800W | 6KW*2 | 21.67KW |
| JP-4120GPH | 800*600*550 | 264L | 6000W | 9KW*2 | 28.87KW |
| JP-4144GPH | 1000*600*600 | 360L | 7200W | 12KW*2 | 39.42KW |
| JP-4216GPH | 1000*900*600 | 540L | 5400 | 18KW*2 | 53.37KW |
| JP-4288GPH | 1200*900*800 | 960L | 7200 | 27KW*2 | 76.57KW |
Ultrasonic cleaning technology has been widely used in many pharmaceutical companies, especially for the cleaning of vials, oral liquid bottles, ampoules, large infusion bottles, and cleaning of butyl rubber stoppers and natural rubber stoppers. For the cleaning of bottles, ultrasonic cleaning technology is used to replace the original brushing machine, which is realized by the processes of inverted water injection, ultrasonic cleaning, internal and external washing, air drying, and turning.
In daily production, glasses and jewelry can be cleaned with ultrasonic waves. The speed is fast and there is no damage. Large hotels and restaurants use it to clean dishes. It not only has good cleaning effect, but also has the effect of killing viruses.
1. Aerospace, aviation - cleaning precision parts. Electronic circuit boards, aircraft wheels, brake systems, air conditioning heat exchangers, bearings, various metal parts.
2. Railway - various gate valves, brake valves, shock absorbers, passenger cars, refrigerated truck refrigeration system condensers, radiators, locomotive internal combustion engine zeros, components, electrical zeros, components.
3. Automobile, motorcycle manufacturing - cylinder, cover, steering mechanism, shock absorbers and various machined parts, chassis, wheel de-oiling, derusting, descaling before electrophoresis.
4. Optical devices - camera lens, microscope, telescope, glasses, watch glass, optical lens after grinding, cleaning before coating.
5. Containers - a variety of oral liquid containers, food glass metal containers, cosmetic containers, packaging containers, dental appliances cleaning, inspection board.
6. Medical equipment - endoscopes, surgical instruments, syringes, test tubes, biochemical test containers, glass pieces of blood, tissue fluid, dirt cleaning.
7. Extraction of active ingredients from herbal medicines - replaces the traditional high-temperature boiled extraction process to efficiently and protect active ingredients.
8. Electronic manufacturing, communications, computers - SMT patch, PCB soldering flux, impurity cleaning.
9. Microelectronics - single crystal silicon wafers, process cleaning of integrated circuit manufacturing.
