Product Description

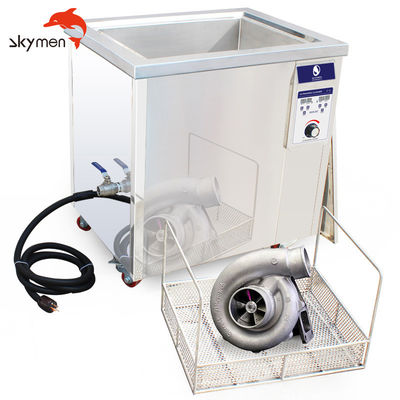

Stainless Steel Industry Ultrasonic Single Tank Cleaner 53 L For industrial metal parts cleaning
1.Automatic frequency tracking generator MCU-SWEEP drive, modular design of the whole machine, easy to operation, convenience to maintenance
2.Digital controlled Dispaly, one-button to start degassing, can quick remove the air in water,and have strong ultrasonic effect,
3.20-80 ℃ heating temperature adjustable, 0-100% ultrasonic power adjustable, cleaning time can be adjusted in minutes or hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong,
4.High Q ultrasonic transducers, high strength glue bonding,have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment, when the machine has no liquid level protection, the ultrasonic work will have abnormal alarm function
5.Pass 3800V high voltage test, strict production process and aging process,have mute cover/ 304 stainless steel washing basket, etc.and certificated by CE/ROSH/FCC
6. Additional flitration and circulation, automatic basket lifting system, enter drainage system can be added too.
Feature
Ultrasonic frequency : 28/40 kHz;
The tank material : stainless steel SUS304
Shell material : SUS304;
Tank capacity : 53L;
Timer : 1~99 min adjustable ;
Heater: 0 ~80℃ adjustable;
Power : AC 100 ~ 120 V, 60 Hz/AC 200 ~ 240 V, 50 Hz;
Ultrasonic power :360~900 W, 18 transducers;
Heating power : 3000W;
Tank size : 500 x 350 x 300 mm (L x W x H);
Unit size : 680 x 530 x 700 mm (L x W x H);
G.W. : 95 kg;
Including
- 1 x Ultrasonic Cleaner
- 1 x Cleaning Basket
- 1 x Instruction Manual
Specifications:
| Model |
JP-180ST |
Frequency |
40kHz |
| Tank capacity |
53L |
Timer |
digital timer regulation |
| Tank size |
500*350*300mm |
Unit size |
735*500*695 |
| Color box Size |
735*455*695 |
Carton packing: |
795*515*815 |
| Ultrasonic power |
900W |
N.W. |
65kg |
| Power supply |
AC 100-120V,60Hz AC 220-240V, 50Hz |
G.W. |
68kg |
FAQ:
Q: What's the advantage of Skymen ultrasonic cleaner?
A: Skymen ultrasonic cleaner is the best way to have thorough cleaning
Q: What about the warranty?
A: 1 Year warranty for Skymen ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
Q: What are the advantages of ultrasound over traditional cleaning methods?
A: Minimize the use of manual labor
Make cleaning and degreasing without the use of organic solvents
Clean hard to reach areas of products and remove all types of dirt
Shorten the processes such as extraction, dispersion, purification, chemical reactions
Eliminates costly mechanical and chemical cleaning of heat exchangers
